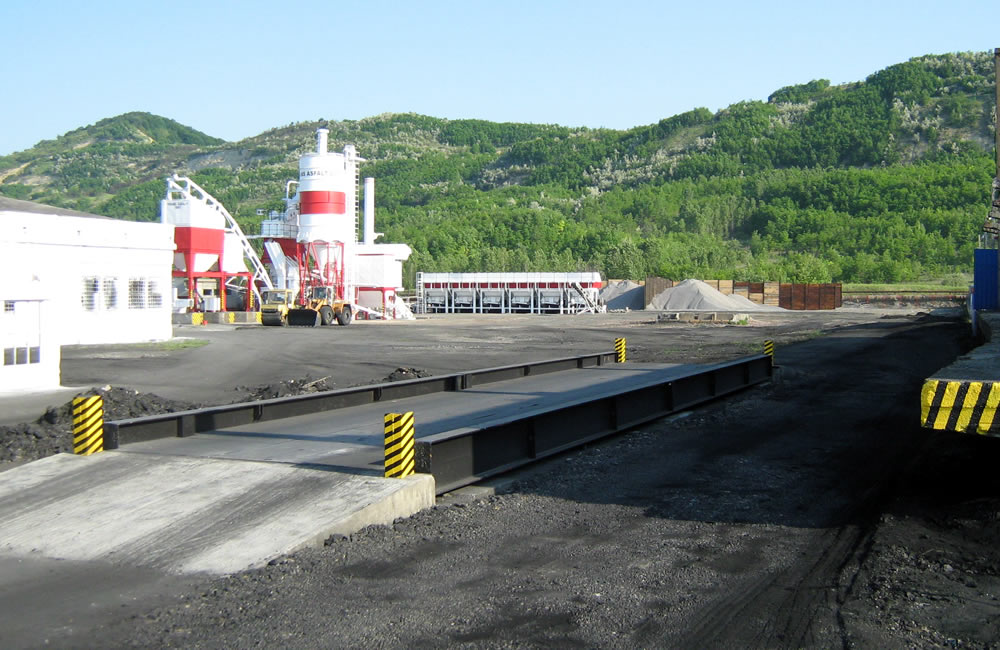

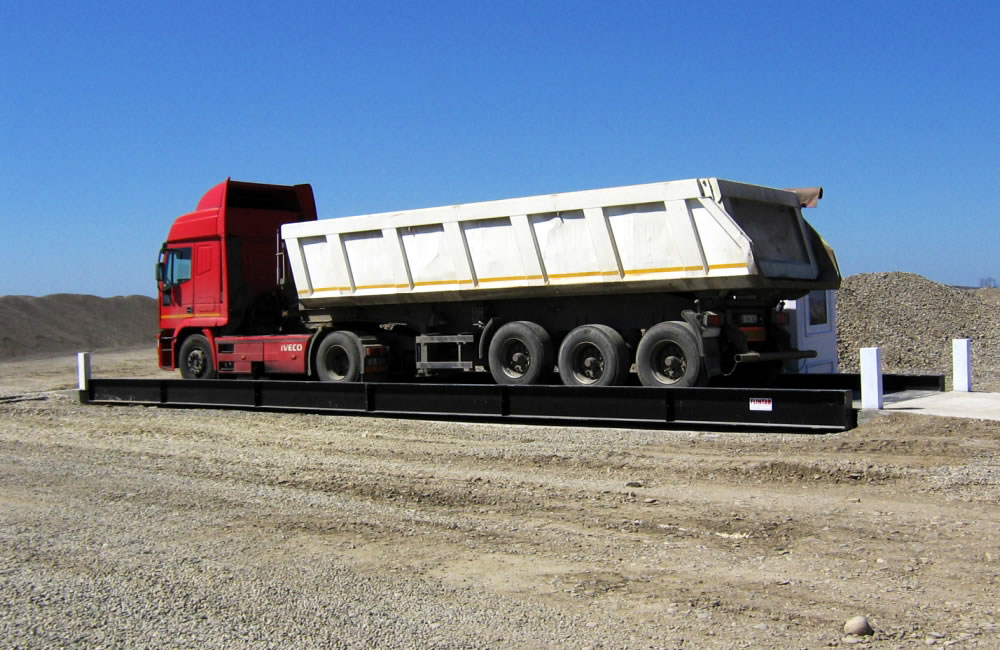

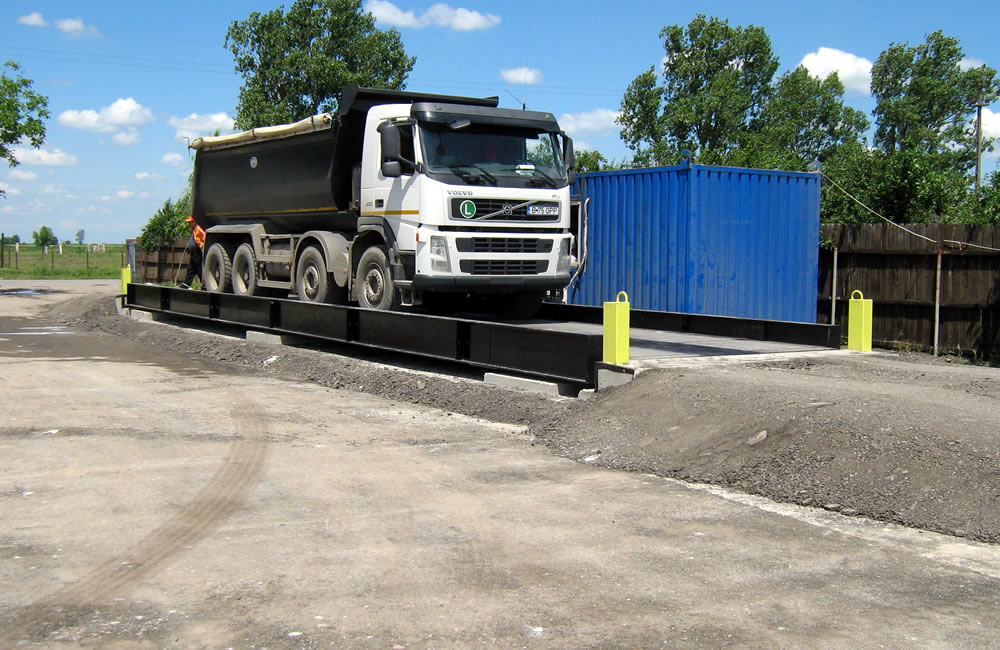

FAST truck scale

METALLIC

HEAVY DUTY

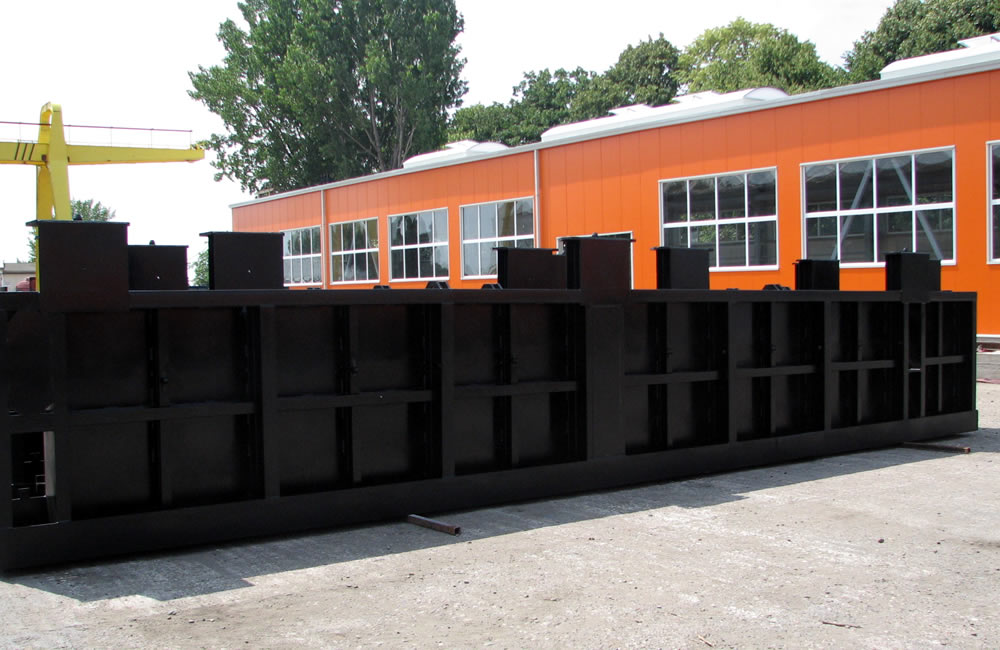

Welded structure with high side beams, flanged longitudinally and transversely. 8mm thick corrugated sheet metal track. Platform height 20cm. Non-removable lids in the middle.

4 modules
6 weighing cells

* Optional: 9, 10, 12, 14, 20, 22, 24m / Standard active width: 3m

Remarkable qualities of an all-metal construction, robust and supple, H = 20cm
High side beams;
Top model;

LENGTH	16m	18m
PLATFORM	METAL
CAPACITY [t]	80	80
CLC [k]	75	75
ARROW F [mm]	1: 750	1: 720
HEIGHT H [cm]	20	20

CONSUMPTION	16m	18m
METAL [t]	10.6	11.7

CLC
Concentrated Load Capacity
75K

SF
Safety Factor
≥2

FEA
FEA (Finite Element Analysis)

f
Platform Arrow Under Maximum Load
1: 750

H
Platform height
20cm

The resistance structure is considered the best “I” beam structure (extended steel I-beams), design recommended as “the best practice” by the most competent international authorities in the fields of transport and construction of roads and bridges (scales being assimilated with a bridge-structure). The design of the FLINTAB platform also excludes enclosed spaces where excessive moisture can initiate corrosion processes from the inside out.

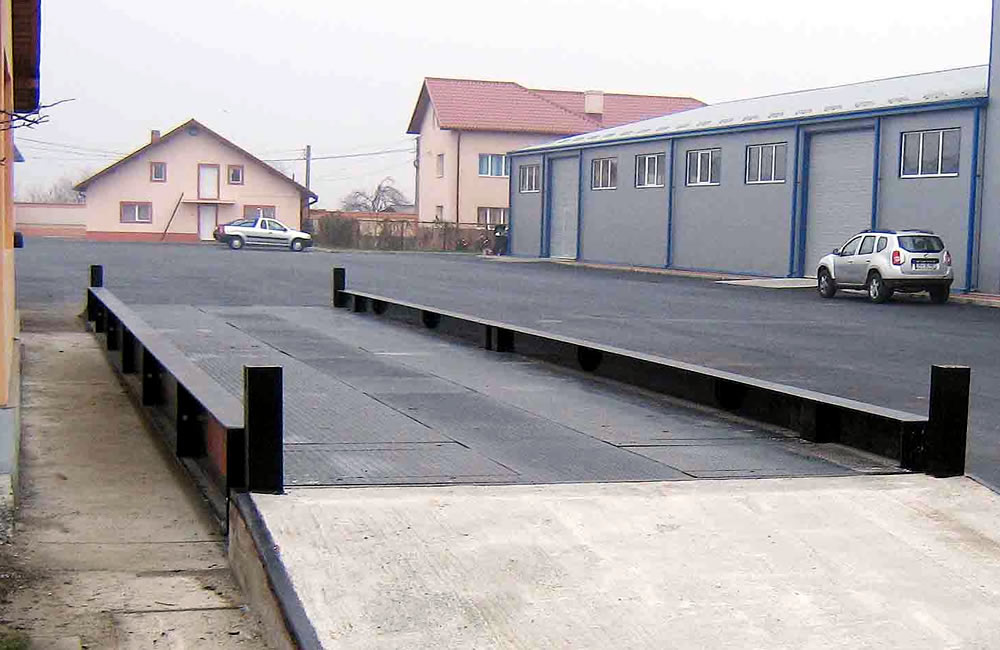

The height of the deck is only 20 cm and the ground clearance is a maximum of 10 cm. The metal structure is at least 20% heavier than any other competing scale, with a direct effect on an actual measured arrow better than 1: 700. Any other support structure, used by many other manufacturers, to reduce the metal quantity of the platform, implicitly the price, immediately leads to two negative effects:

High deck height (almost double!) with direct effect on long ramp length: high construction costs / high volume of concrete and waste of space;
Indirectly, the lack of high side beams, which provides total protection against the truck slipping sideways from a height of about 50cm.

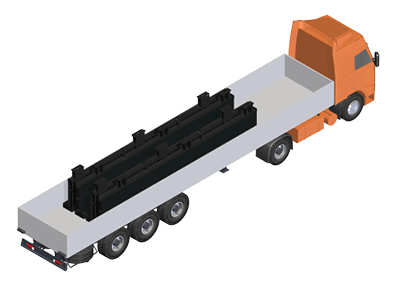

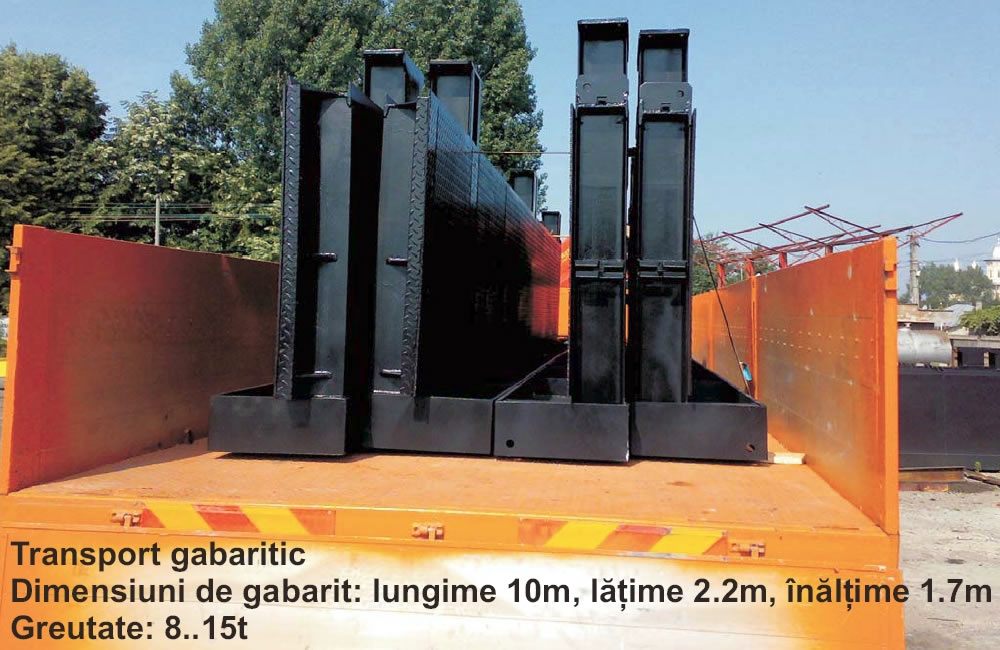

GABARITIC TRANSPORT
PLATFORM WEIGHT:
16m: 10,6t
18m: 11,7t

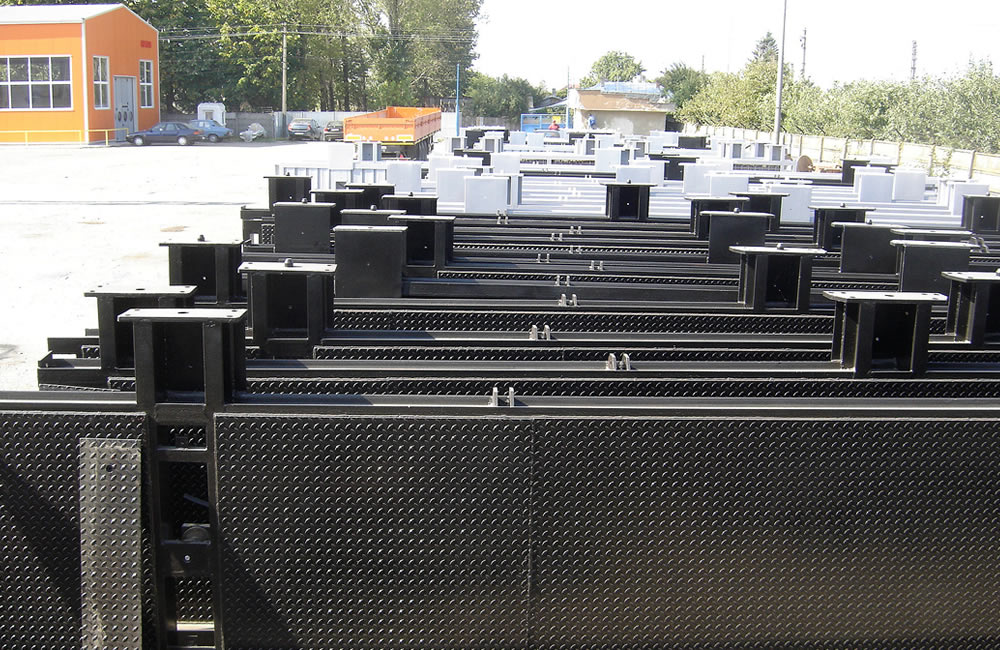

QUICK ON-SITE INSTALLATION

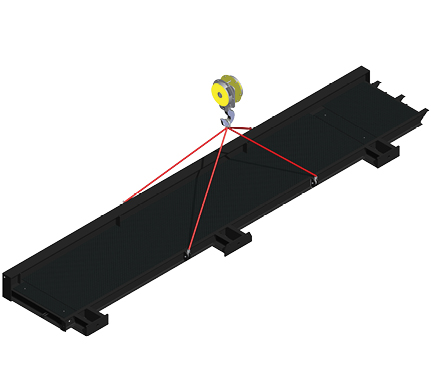

WEIGHT MODULE:
16m: 2,6t 18m: 2,9t

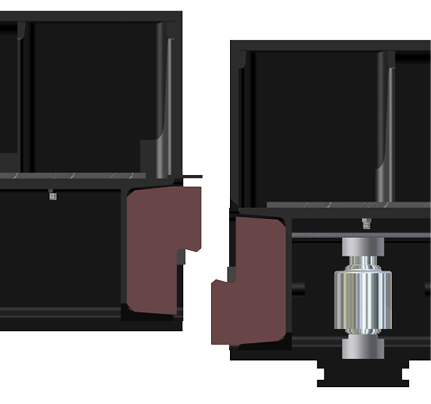

PRINCIPLE OF CONNECTION BETWEEN MODULES

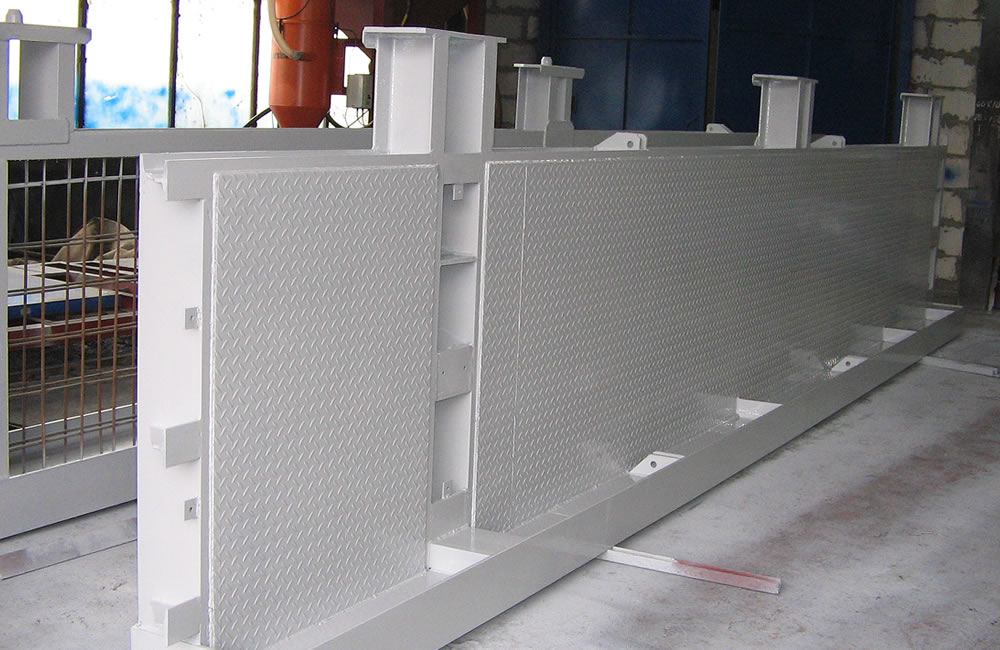

ACCESS OVER THE PLATFORM

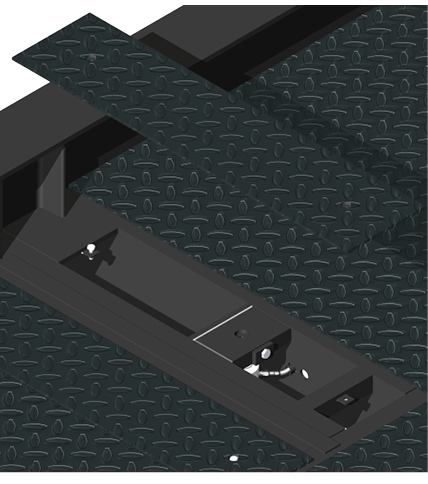

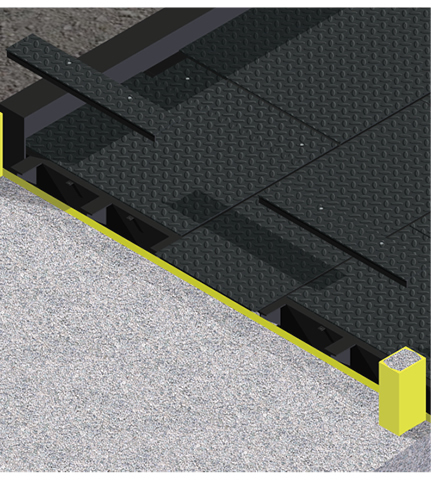

CLEANING CAPS

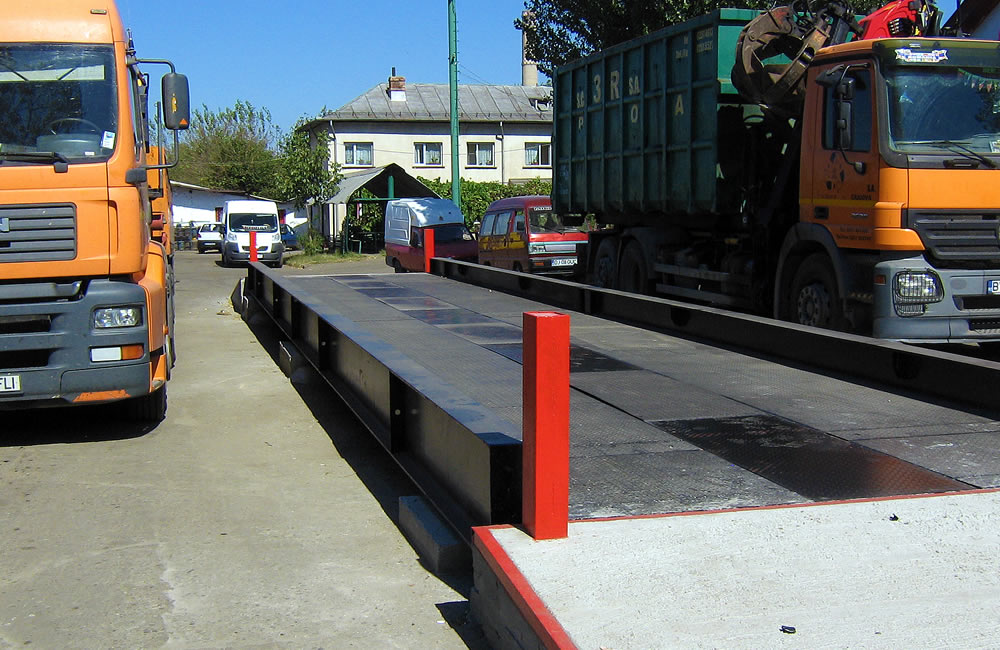

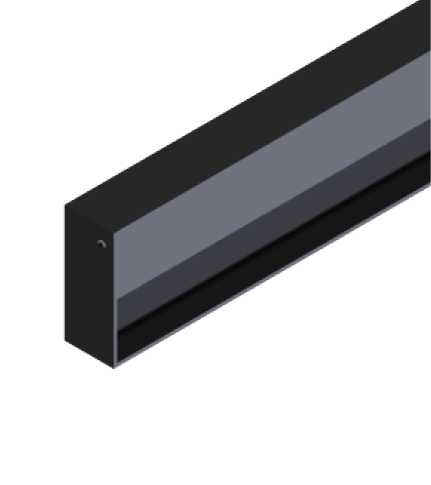

HIGH SIDE BEAMS
BEAM HEIGHT:

16m: 450mm
18m: 500mm

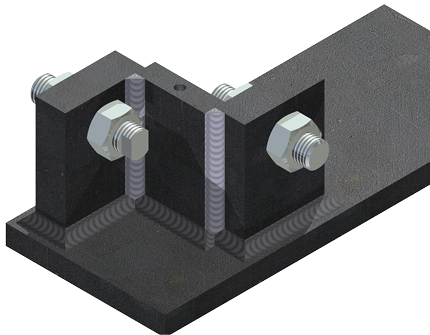

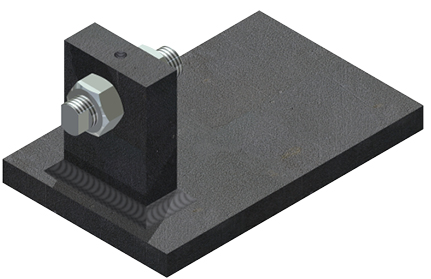

LIMITATION SYSTEM
Longitudinal and transverse

ANTI-CORROSION PROTECTION
Sanding and painting with 2 coats of primer and 2 coats of ACRYLIN 3

Steel shot blasting in specially designed cabin
Painting with airless installation, the final layer thickness is reached at least 120 microns
2 coats with a final thickness of at least 60 microns, anticorrosive based on epoxy and polyaminoamide resin, organic additives and solvents.
2 coats of ACRILIN E paint, with a final thickness of at least 60 microns

CABLES

Protection against accidental knocks, crushing, rodents, numerous freeze-thaw cycles.

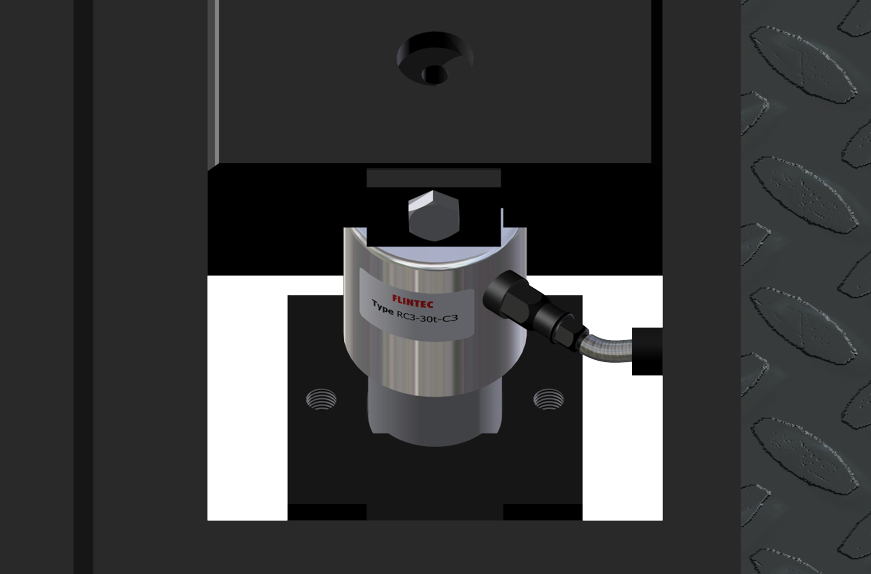

CELLS AND CONNECTION BOX

Protection against vandalism and unauthorized access.

FLINTAB Truck Scales foundations are designed for any healthy foundation ground with conventional pressures p≥250KPa. Optionally, projects can be MLPAT-DCEP approved.

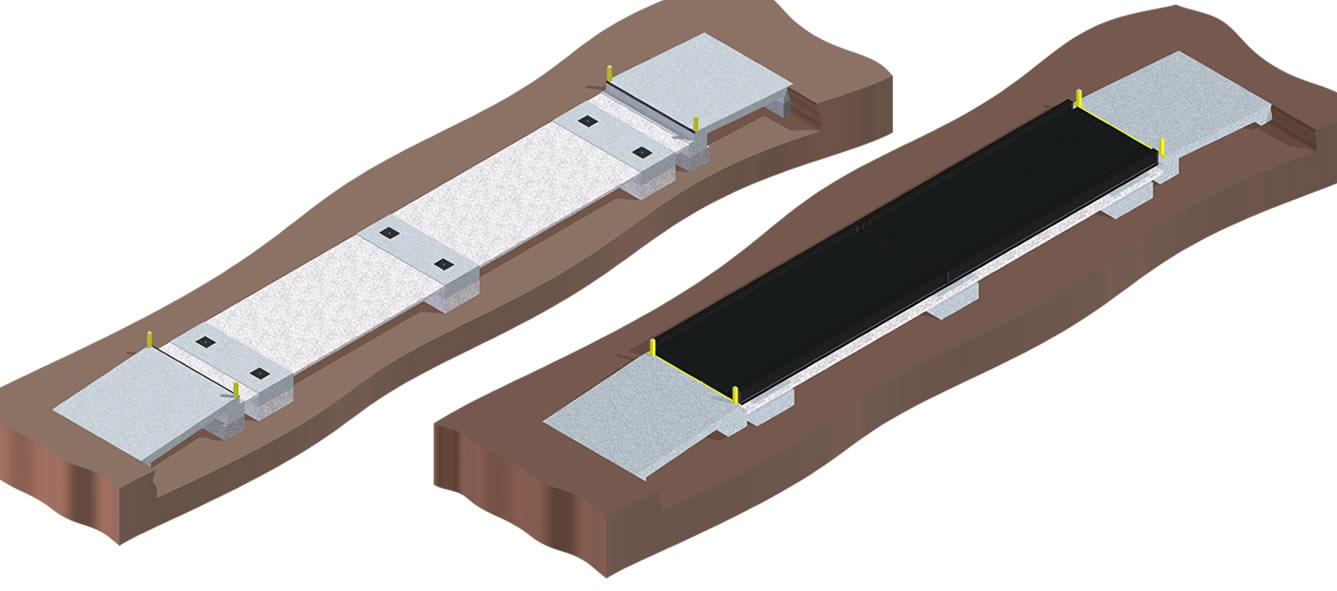

POS FOUNDATION - Poured on site
UNTEN ARRANGEMENT, STONE ROAD OR BALLASTED

Three monolithic reinforced concrete piles with metal elements embedded in the six support points. Screed poured between concrete piles. The support of the weighing platform on the foundation is made by special mounting kits of the weighing cells. Concrete ramps.

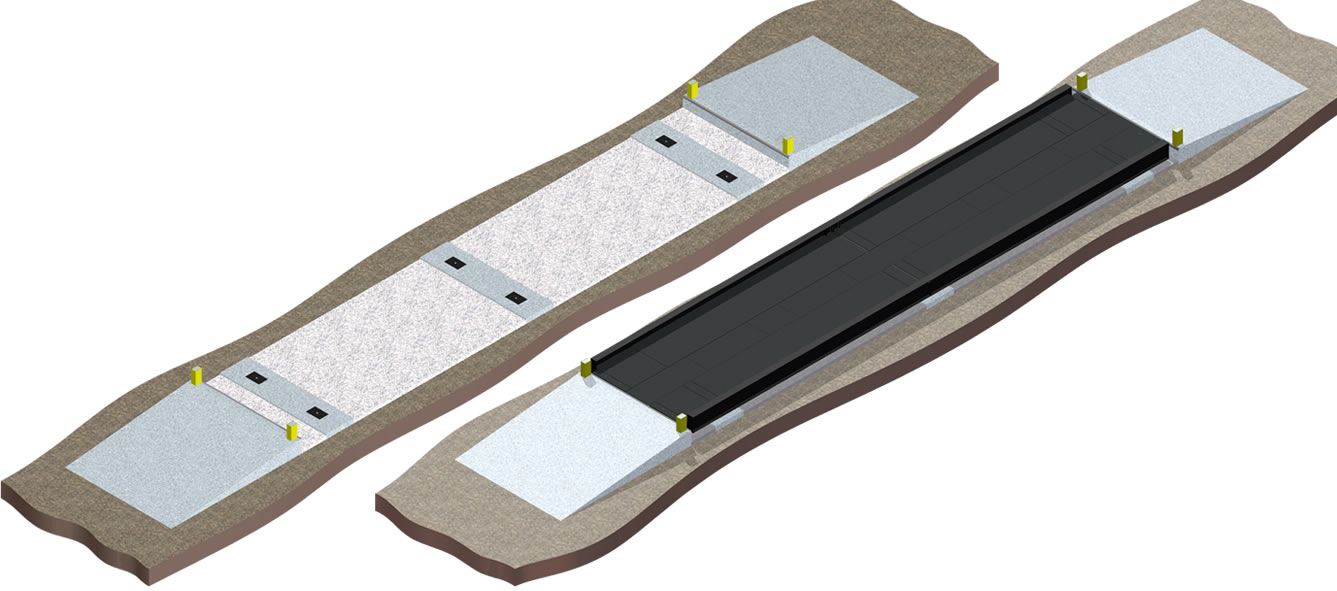

FOUNDATION PER - Poured on existing road
WEAK, CRACKED OR LEVELED CONCRETE ROAD

Reinforced concrete slab 10..20cm thick with metal elements embedded in the six support points. The support of the weighing platform on the foundation is made by special mounting kits of the weighing cells. Concrete ramps.

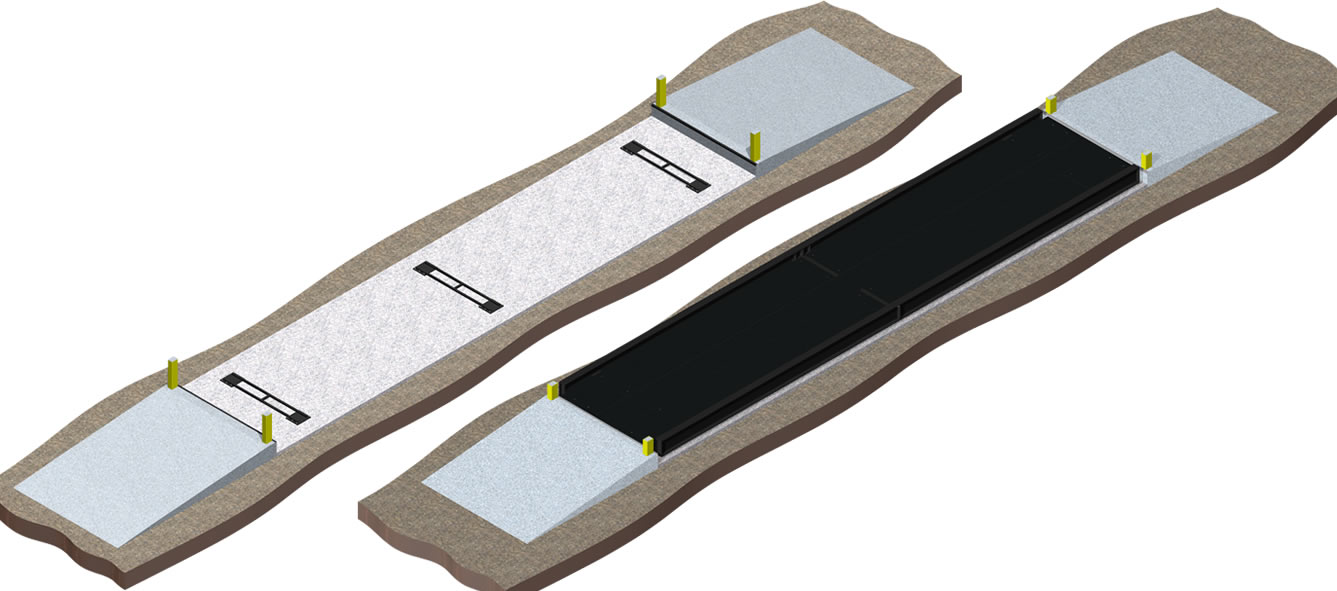

P + DOR FOUNDATION - Concrete plate + direct on road
WEAK, CRACKED OR LEVELED CONCRETE ROAD

Reinforced concrete slab at least 8cm thick. The support elements of the special weighing cell mounting kits are installed on this surface by means of chemically fixed M16 studs. Concrete or metal ramps.

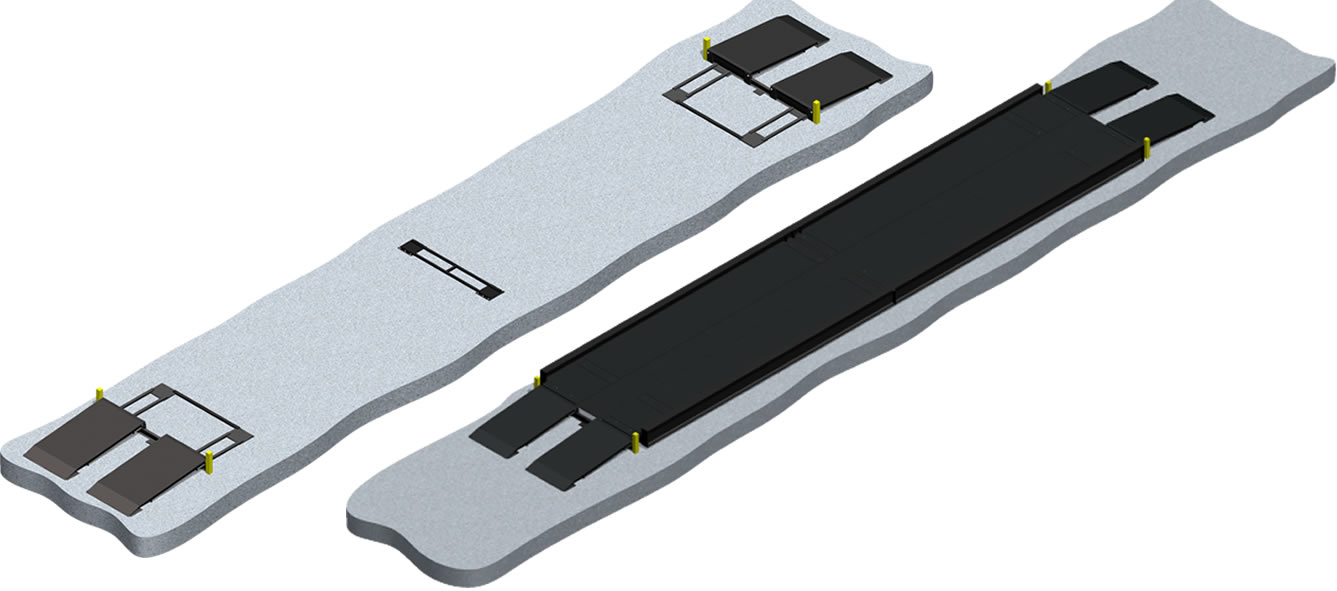

DOR FOUNDATION - Direct on road
FLAT OR FLAT CONCRETE PLATFORM FOR HEAVY TRAFFIC

Thickness of concrete slab> 25cm. Deviations from flatness < 5mm. The support elements of the special weighing cell mounting kits are installed on this surface by means of chemically fixed M16 studs. Prefabricated ramps.

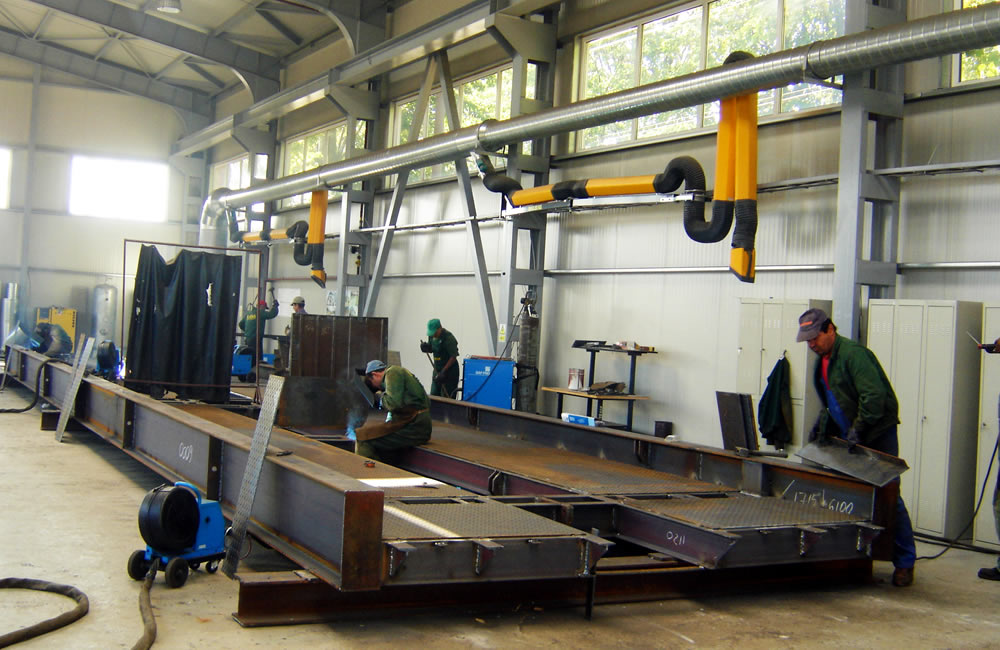

FLINTAB owns its own factory with two modern production halls, with carefully executed and tested manufacturing.

The FLINTAB factory, spread over an area of over 14000sqm, has four production halls totaling 5200sqm and 8000sqm outdoor and indoor storage spaces, equipped with 6 lifting installations.
Visit factory website here: www.flintab-steel.com
