WIN COMPOSITE truck scale

METAL-CONCRETE
HEAVY DUTY

Longitudinally and transversely flanged welded structure. Prefabricated, reinforced and concreted running track in the factory using concrete type C45 / 55 according to DIN 1045. Platform height 25cm. Optional corrugated road covers and protective railings. The central longitudinal space is 700mm wide.

6 modules
8 weighing cells

* Optional: 9, 10, 12, 14, 20, 22, 24m / Standard active width: 3m, optional: 3.2; 3.4; 3.6; 4; 4.2m

  • Combines the rigidity and suppleness of metal construction with the durability of concrete; H = 20cm;
  • Latest model

LENGTH 16m 18m
PLATFORM METAL-CONCRETE
CAPACITY [t] 60/80 60/80
CLC [k] 70 70
ARROW F [mm] 1: 1000 1: 1000
HEIGHT H [cm] 24 24
CONSUMPTION 16m 18m
CONCRETE [t] 7.2 8.0
STANDARD 5.9 6.4
EXTENDED 6.7 7.3
PIT MOUNTED 7.1 7.7

STRUCTURE

CLC
Concentrated Load Capacity
70K
SF
Safety Factor
≥2
FEA
FEA (Finite Element Analysis)
f
Platform Arrow Under Maximum Load
1: 1000
H
Platform height
24cm
The resistance structure is considered the best “I” beam structure (extended steel I-beams), design recommended as “the best practice” by the most competent international authorities in the fields of transport and construction of roads and bridges (scales being assimilated with a bridge-structure). The design of the FLINTAB platform also excludes enclosed spaces where excessive moisture can initiate corrosion processes from the inside out.
The height of the deck is only 24 cm and the ground clearance is a maximum of 10 cm. The metal structure is at least 20% heavier than any other competing scale, with a direct effect on an actual measured arrow better than 1: 700. Any other support structure, used by many other manufacturers, to reduce the metal quantity of the platform, implicitly the price, immediately leads to two negative effects:
  • High deck height (almost double!) with direct effect on long ramp length: high construction costs / high volume of concrete and waste of space;
  • Indirectly, the lack of high side beams, which provides total protection against the truck slipping sideways from a height of about 50cm.

MODULAR DESIGN

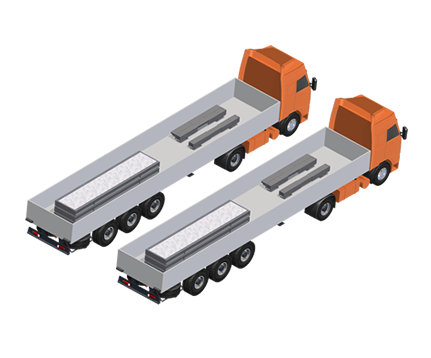

TRANSPORT GABARITIC
PLATFORM WEIGHT:
26t
QUICK ON-SITE INSTALLATION

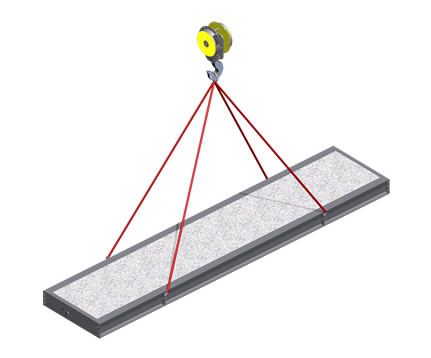

WEIGHT MODULE:
4.5t

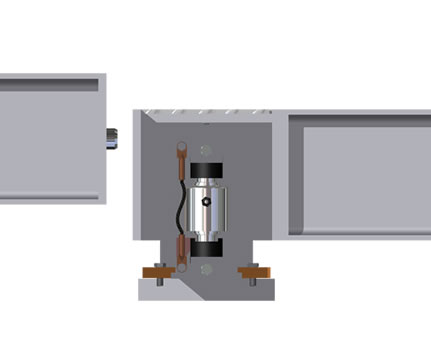

PRINCIPLE OF CONNECTION BETWEEN MODULES

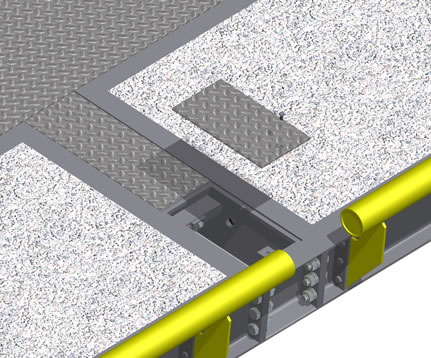

ACCESS OVER THE PLATFORM

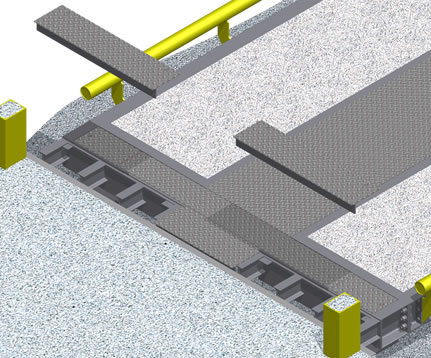

CLEANING CAPS

PROTECTION

ROADABLE CAPABLE
6mm thick ribbed sheet caps. Ø102mm side railings mounted with M16 studs with chemical fixing.

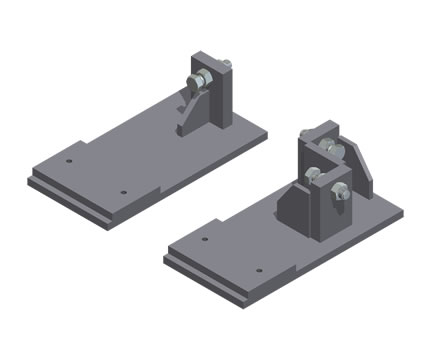

LIMITATION SYSTEM
Longitudinal and transverse
ANTI-CORROSION PROTECTION
Sanding and painting with 2 coats of primer and 2 coats of ACRYLIN 3
  • Grit sandblasting with GRACO installation in specially designed cabin
  • Painting with airless installation, the final layer thickness is reached at least 120 microns
  • 2 coats of primer with a final thickness of at least 60 microns, anticorrosive based on epoxy and polyaminoamide resin, organic additives and solvents.
  • 2 coats of ACRILIN E paint, with a final thickness of at least 60 microns
CABLES
Protection against accidental knocks, crushing, rodents, and many freeze-thaw cycles.
CELLS AND CONNECTION BOX
Protection against vandalism and unauthorized access.

FOUNDATION

FLINTAB Truck Scales foundations are designed for any healthy foundation ground with conventional pressures p≥250KPa. Optionally, projects can be MLPAT-DCEP approved.

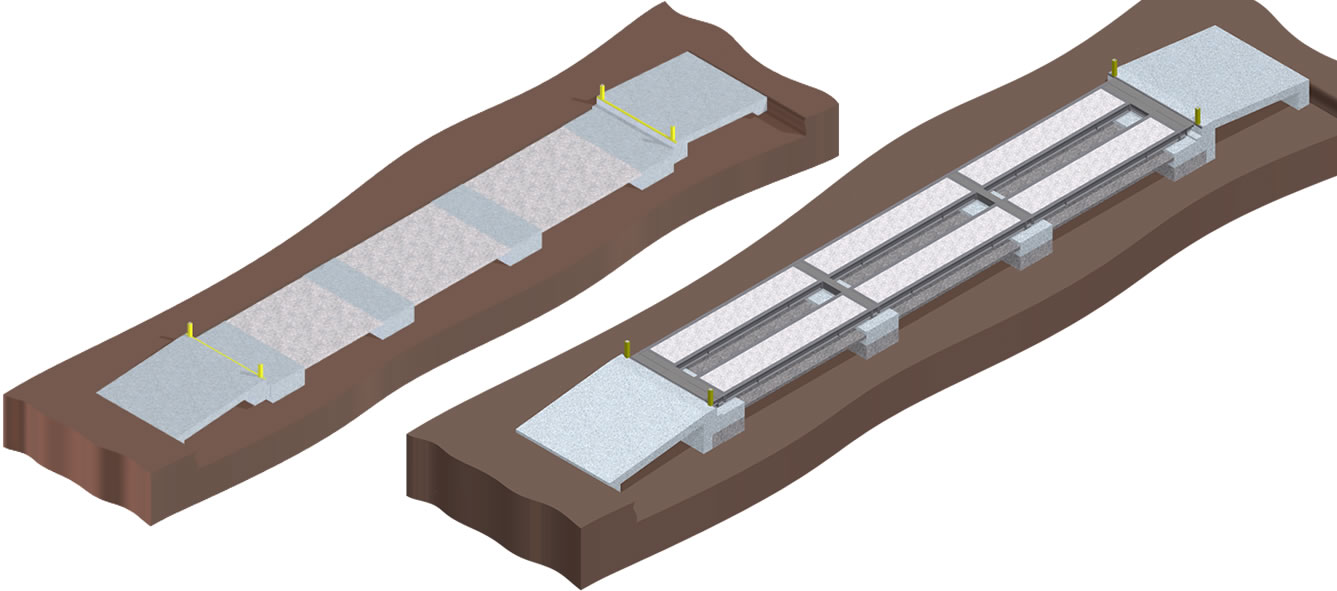

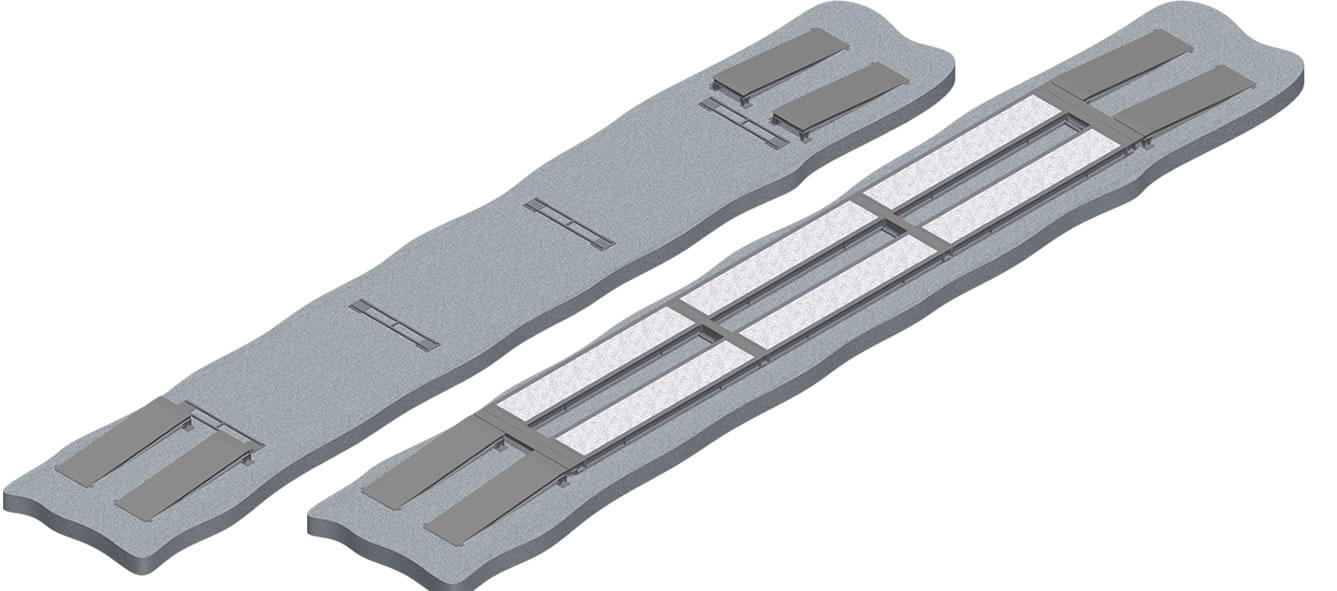

POS FOUNDATION - Poured on site
UNTEN ARRANGEMENT, STONE ROAD OR BALLASTED

Four monolithic reinforced concrete piles with metal elements embedded in the eight support points. Screed poured between concrete piles. The support of the weighing platform on the foundation is made by special mounting kits of the weighing cells. Concrete ramps.

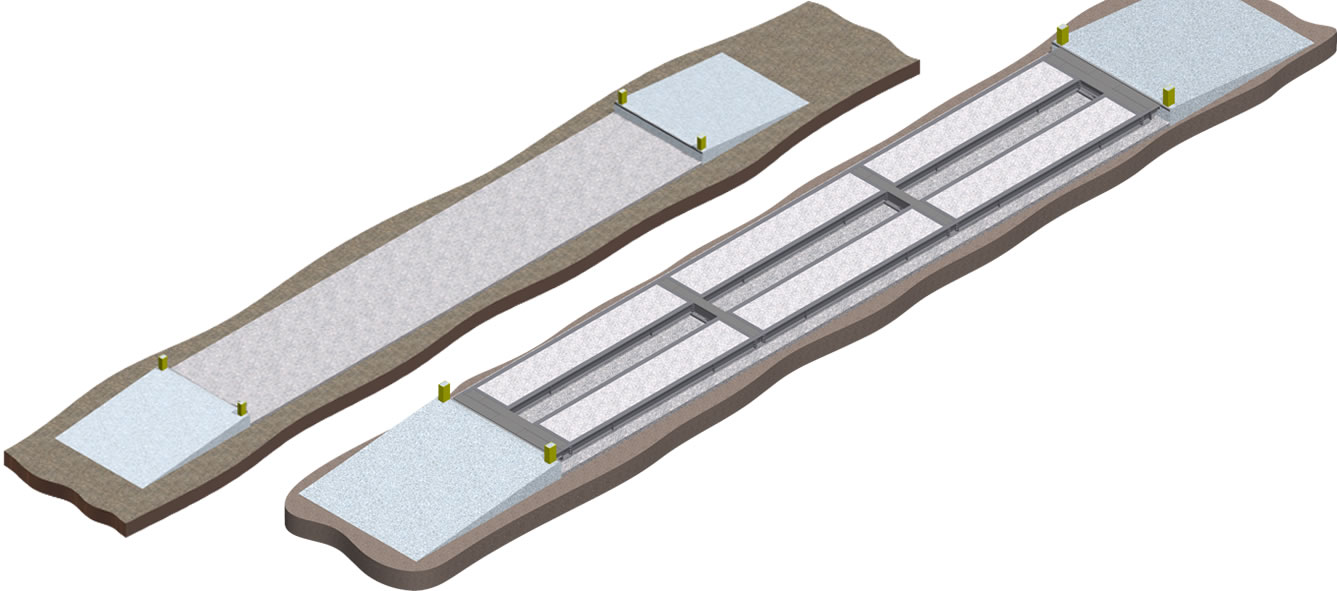

FOUNDATION PER - Poured on existing road
WEAK, CRACKED OR LEVELED CONCRETE ROAD

Reinforced concrete slab 10..20cm thick with metal elements embedded in the eight support points. The support of the weighing platform on the foundation is made by special mounting kits of the weighing cells. Concrete ramps.

DOR FOUNDATION - Direct on road
ROAD OR FLAT CONCRETE PLATFORM FOR HEAVY TRAFFIC

Concrete slab thickness> 25cm. Deviations from flatness < 5mm. The support elements of the special weighing cell mounting kits are installed on this surface by means of chemically fixed M16 studs. Prefabricated ramps.

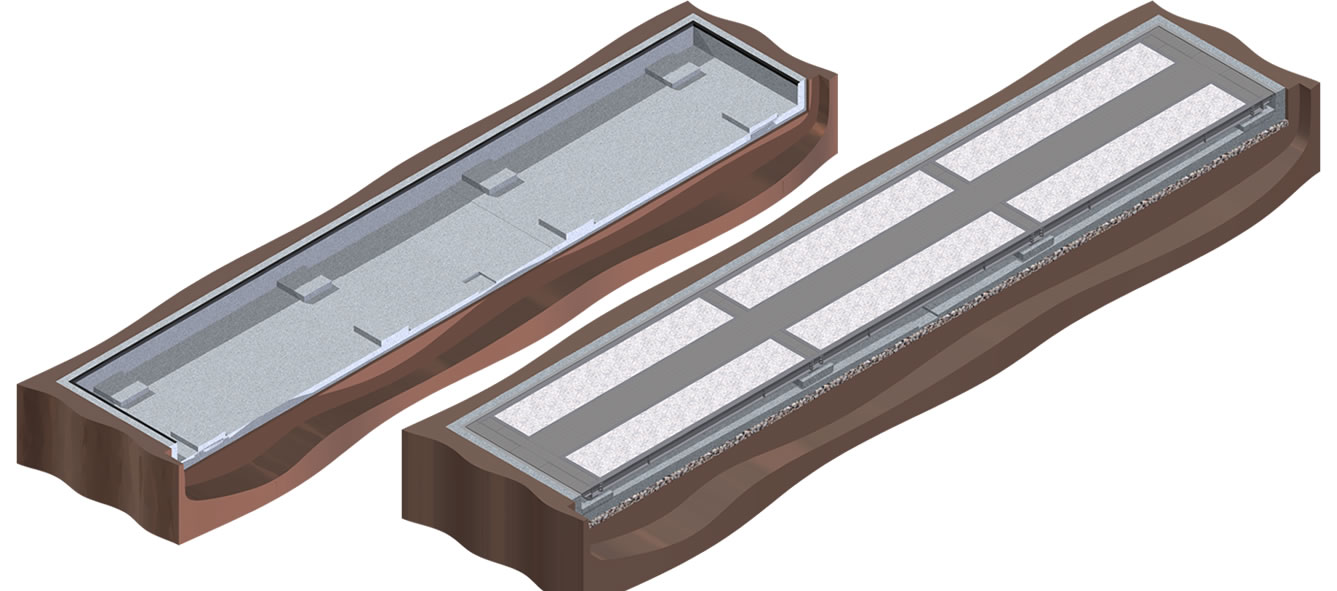

PIT FOUNDATION - Installation in the tub

Tub-mounted scales are recommended in the following cases:

  • available space is very limited
  • is allowed to cross the platform and from the side
  • There are height restrictions in the installation area

ROAD SCALE MANUFACTURING

FLINTAB owns its own factory with two modern production halls, with carefully executed and tested manufacturing.

The FLINTAB factory, spread over an area of ​​over 14000sqm, has four production halls totaling 5200sqm and 8000sqm outdoor and indoor storage spaces, equipped with 6 lifting installations.
Visit factory website here: www.flintab-steel.com

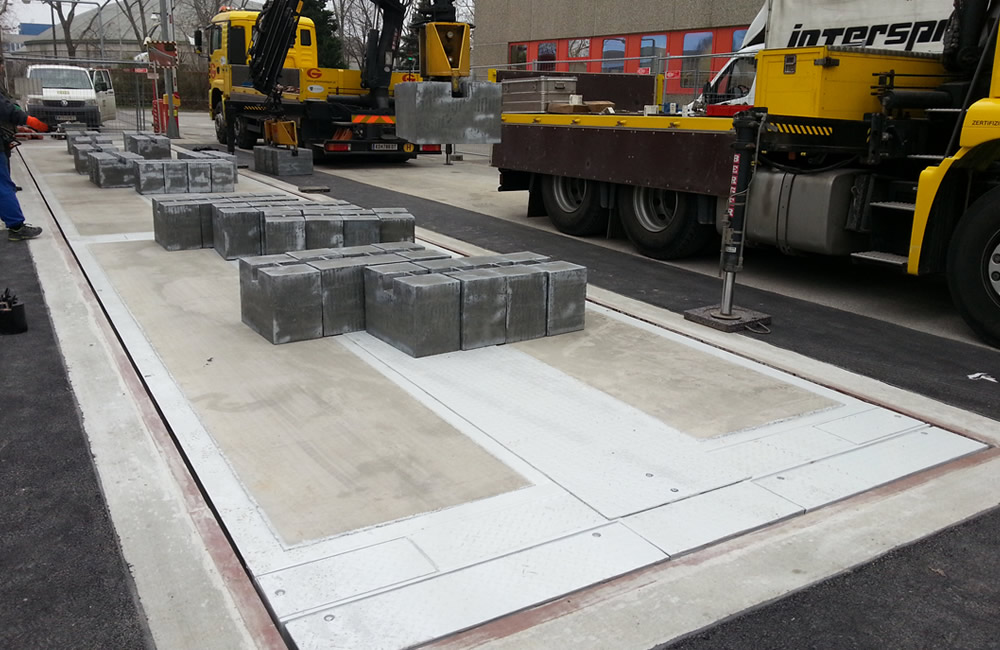

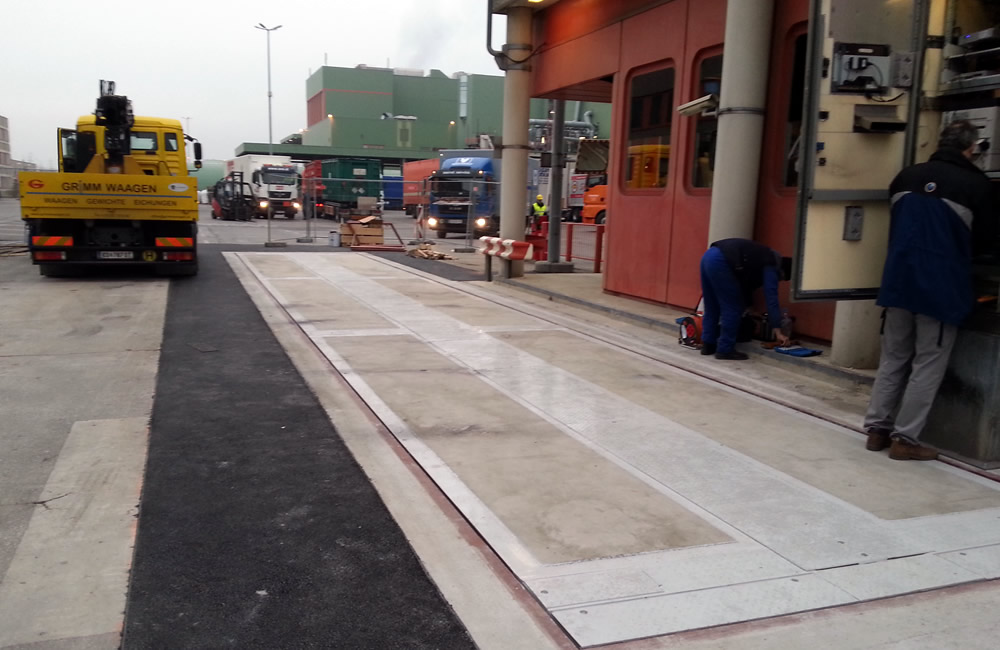

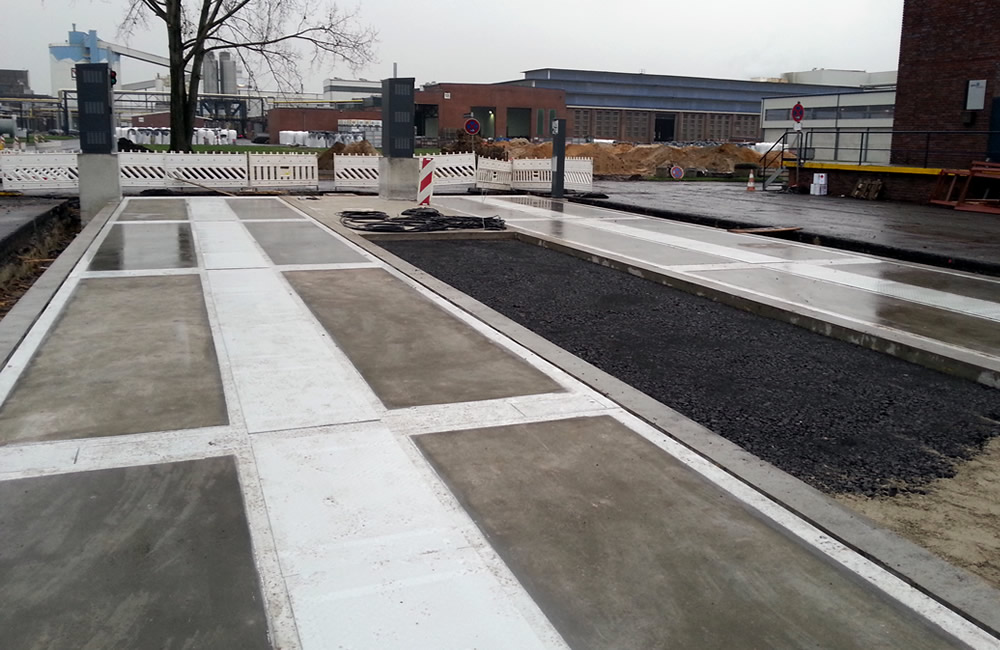

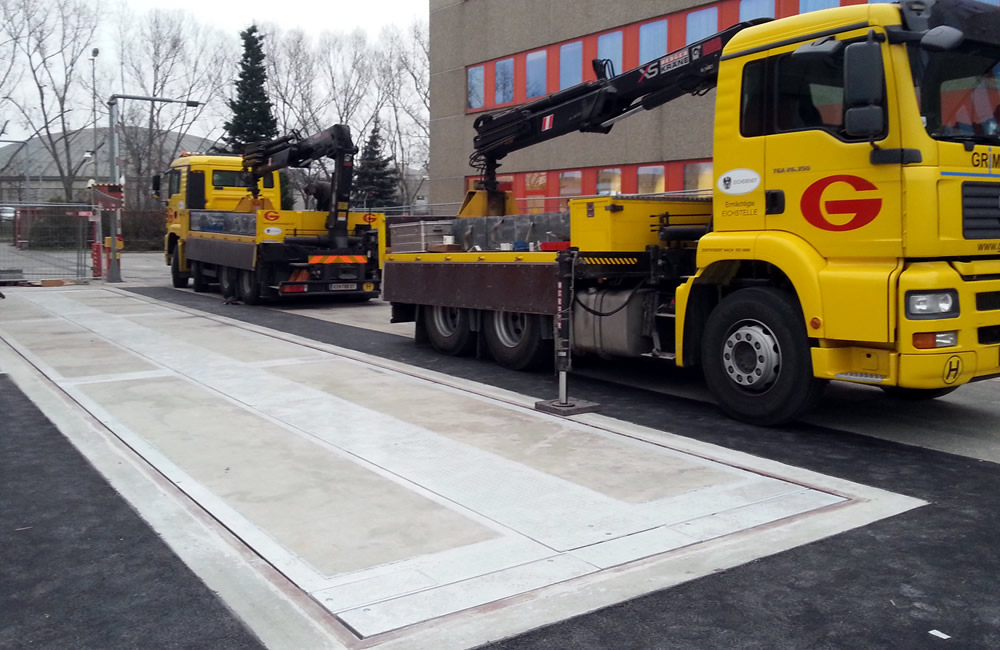

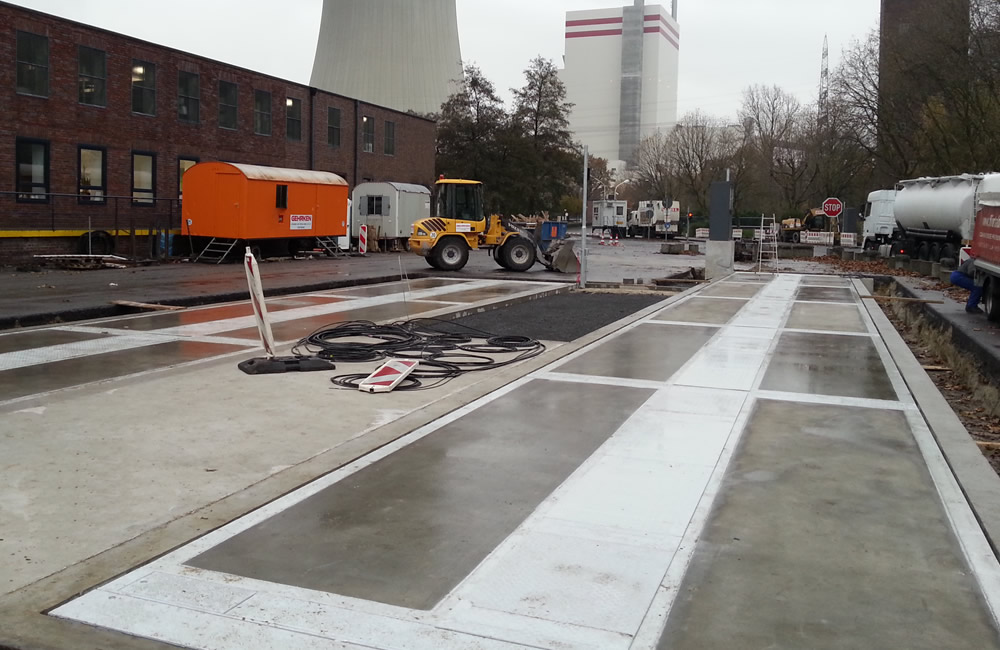

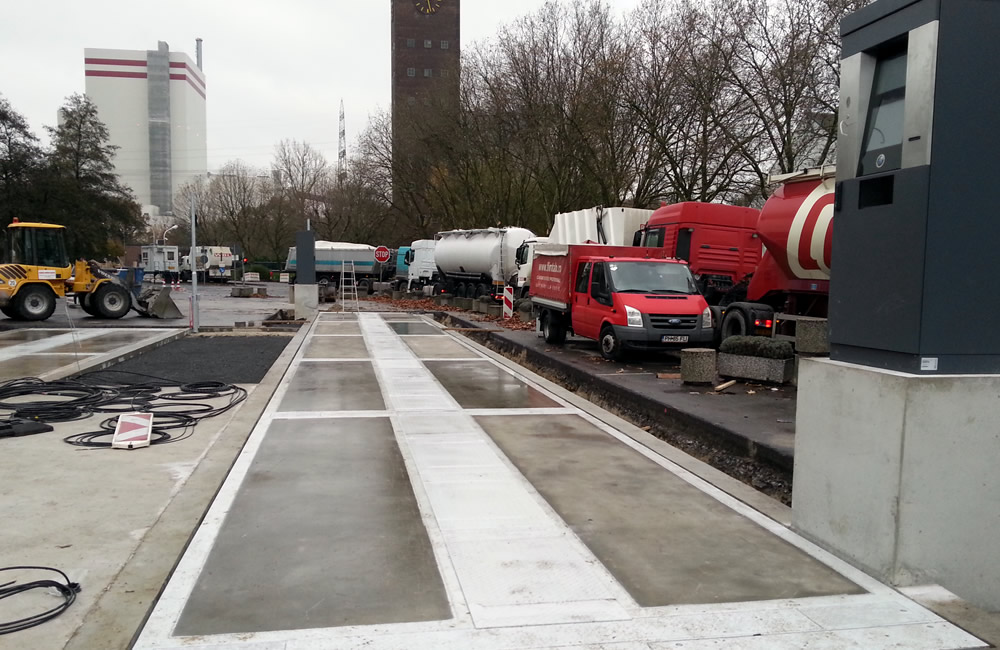

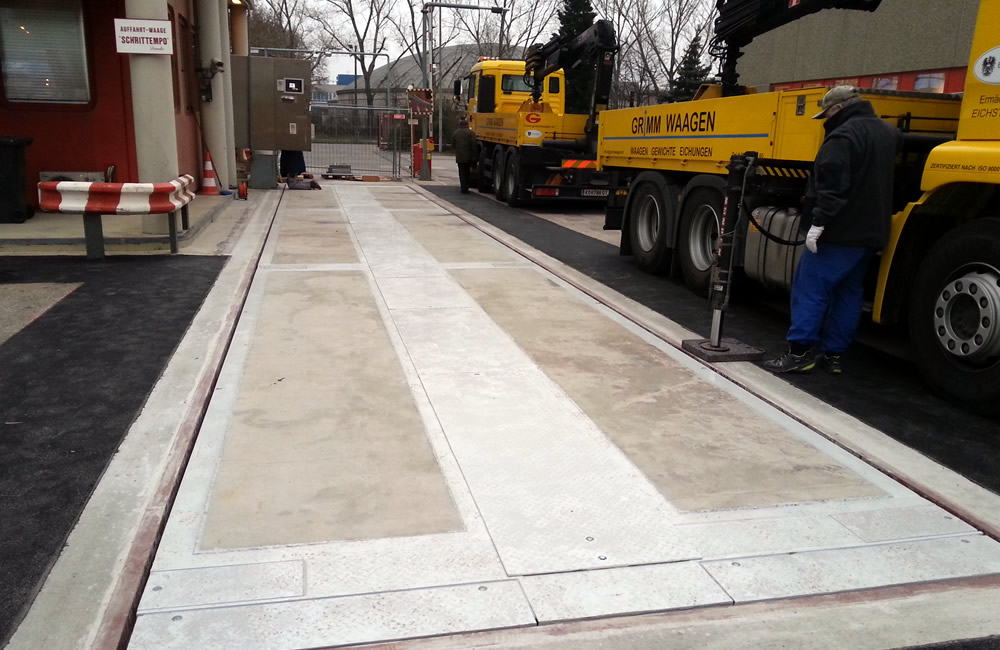

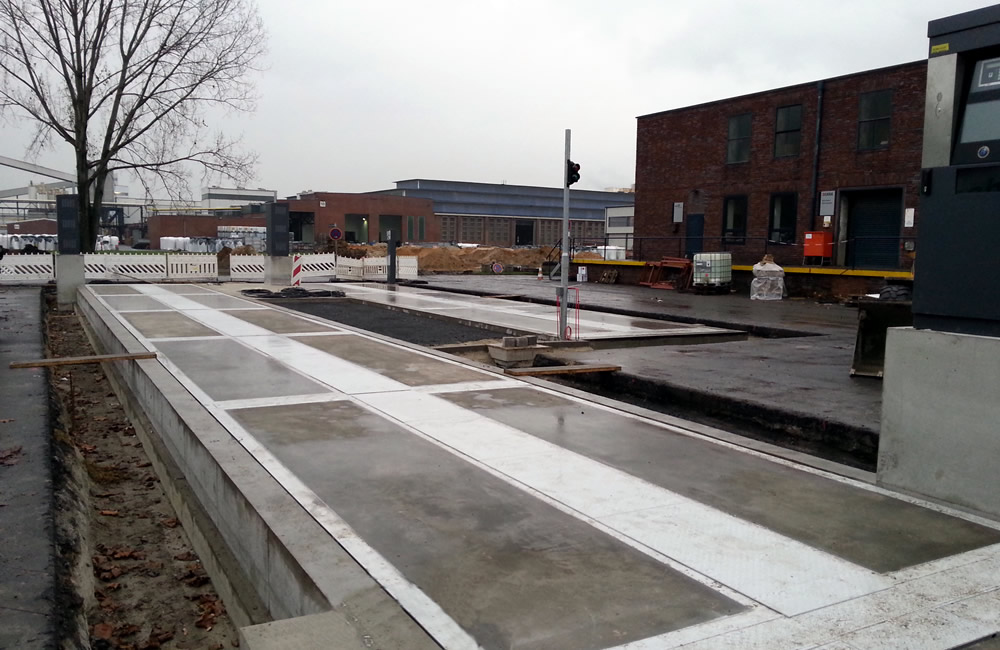

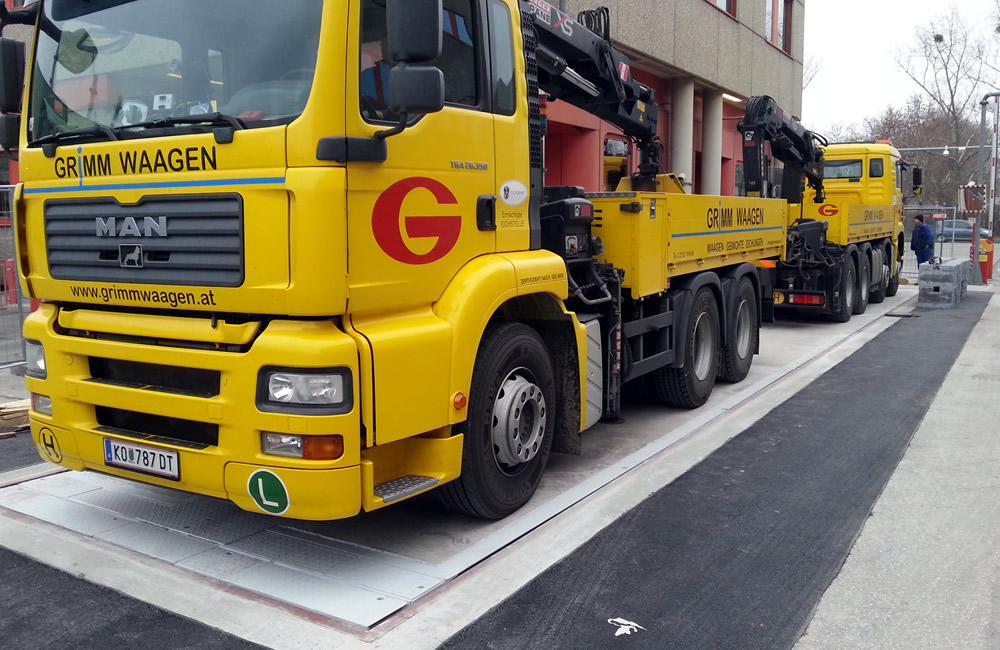

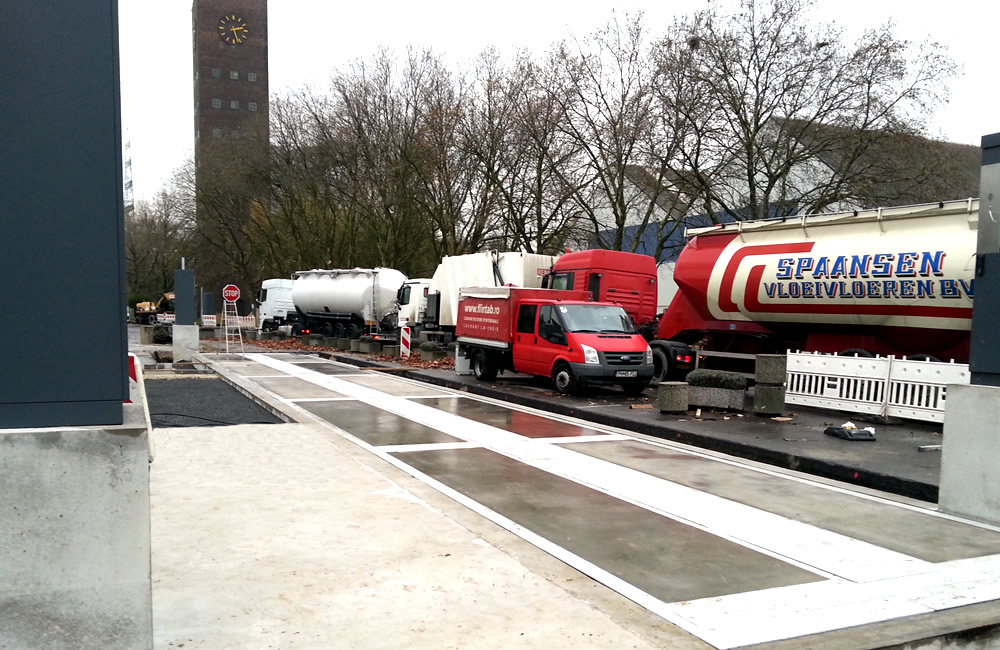

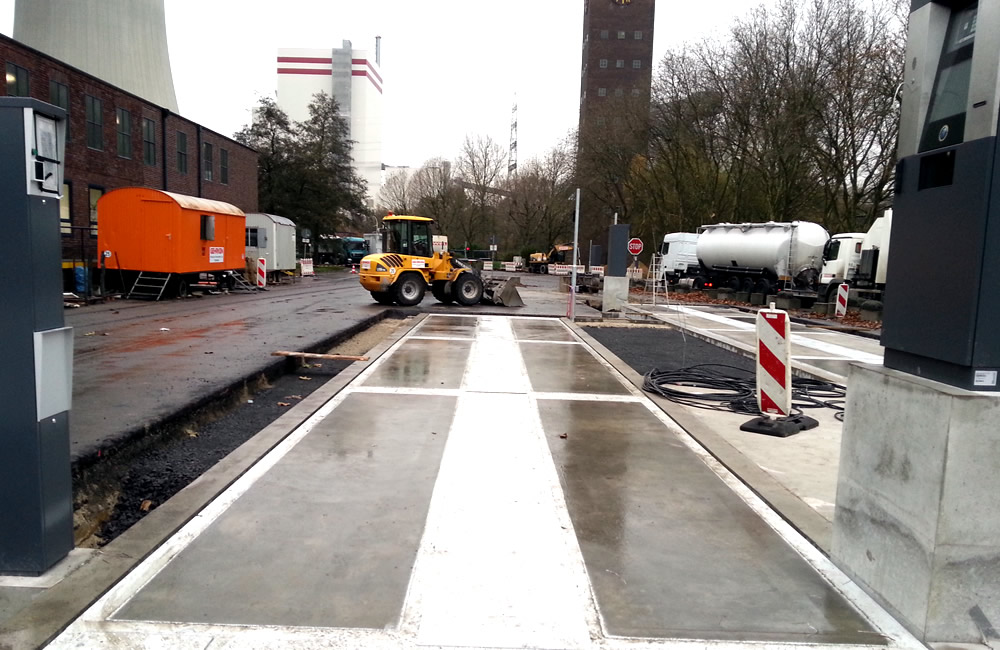

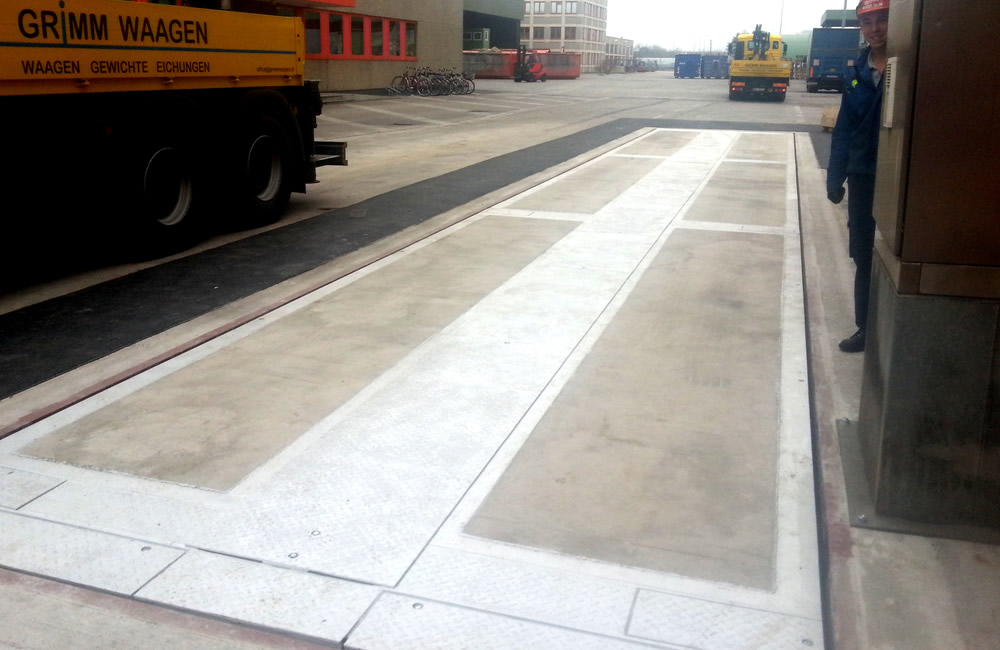

PHOTOS
